KEY
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
|

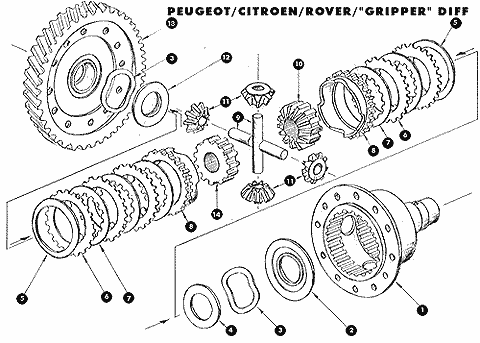

KEY
|
DESCRIPTION
|
|
|
1
|
Diff cage | 1 | |
|
2
|
Diff cage insert | 1 | |
|
3
|
Wavy washer | 1 per side | |
|
4
|
Thrust washer-cage side | 1 | |
|
5
|
Belville preload plate | 1 per side | |
|
6
|
Externally toothed plate | 3 gear side & 2 cage side | |
|
7
|
Internally toothed plate | 3 gear side & 2 cage side | |
|
8
|
Planet driver | 1 per side | |
|
9
|
Cross pin | 2 | |
|
10
|
Side gear - cage side (ext. for std shaft) | ||
|
11
|
Planet pinion | 4 | |
|
12
|
Thrust washer - cover side | 1 | |
|
13
|
End cover with integral ring gear in place of production press/glued fit gear | ||
|
14
|
Side gear - cover side | ||
